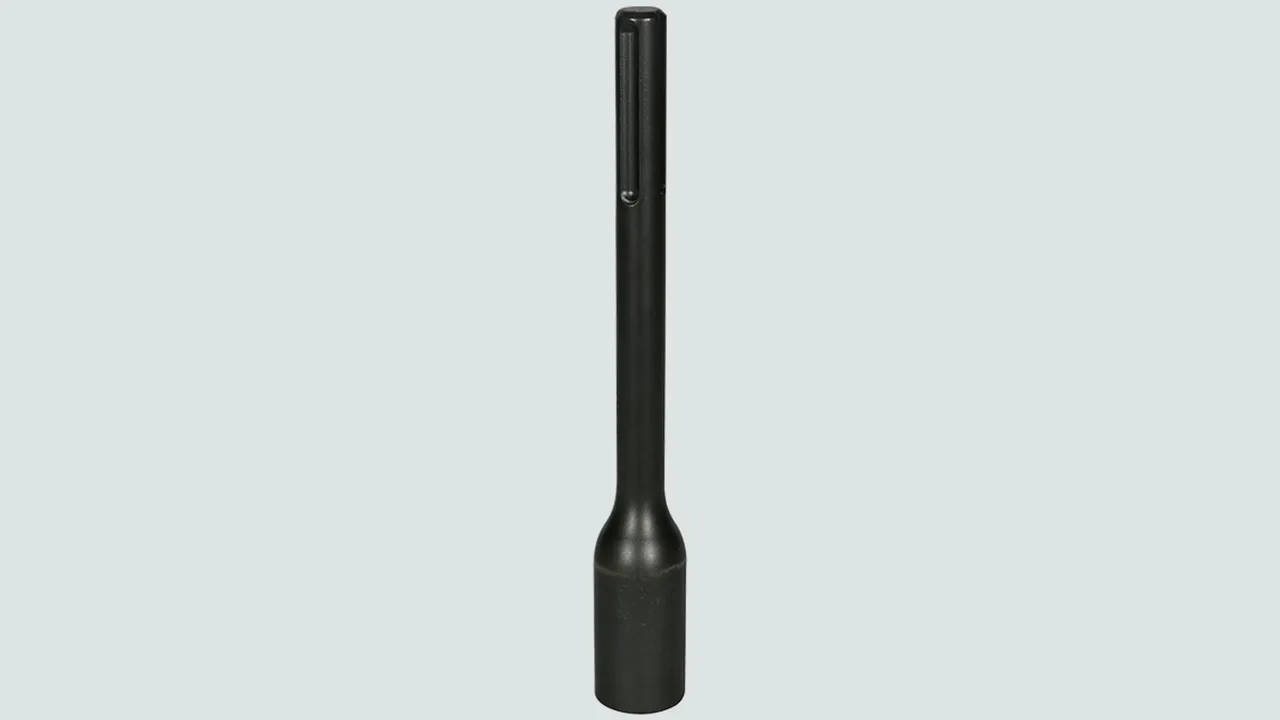

Hammereinsätze für Tiefenerder
:quality(98)/www.dehn.fr/store/f/55889720/HDVORSCHAU/620030_16-9_fam.jpg)
:quality(98)/www.dehn.fr/store/f/55889720/HDVORSCHAU/620030_16-9_fam.jpg)
Für Tiefenerder Typ Z + AZ.
Ø20 mm (Zapfen Ø12 mm Art.-Nr. 620 ...) oder
Ø25 mm (Zapfen Ø15 mm Art.-Nr. 625 ...)
Bei den Typen von Atlas Copco sind mehrere Ausführungen der Aufnahme möglich. Bei Bestellung bitte beachten.
Détails
:quality(98)/www.dehn.fr/store/f/55889721/HDVORSCHAU/Hammereinsaetze_Auswahlhilfe_DE.jpg)
:quality(98)/www.dehn.fr/store/f/55889721/HDVORSCHAU/Hammereinsaetze_Auswahlhilfe_DE.jpg)
Référence de la pièce 620005 HE TE 20 R27 VH WN STBLANK
GTIN 4013364027039, Clients tariffs no (UE): 82079099, Poids brut: 1.07 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | BHF 30 |
Aufnahme | rund Ø27 x 80 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 13 x 50 mm |
Länge | 200 mm |
Erderdurchmesser | 20 mm |
Tiefenerder Typ | Z, AZ |
Sonderausführung Hammereinsatz Art.-Nr. 620 039 für Tiefenerder Art.-Nr. 620 902 TYP AZ NIRO (V4A). |
Référence de la pièce 625005 HE TE 25 R27 VH WN STBLANK
GTIN 4013364027046, Clients tariffs no (UE): 82079099, Poids brut: 1.05 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | BHF 30 |
Aufnahme | rund Ø27 x 80 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 16 x 55 mm |
Länge | 200 mm |
Erderdurchmesser | 25 mm |
Tiefenerder Typ | S, Z |
Sonderausführung Hammereinsatz Art.-Nr. 620 039 für Tiefenerder Art.-Nr. 620 902 TYP AZ NIRO (V4A). |
Référence de la pièce 620009 HE TE 20 R27 LVH WN STBLANK
GTIN 4013364118119, Clients tariffs no (UE): 82079099, Poids brut: 2.80 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | BH 55, BH 65, BH 55rw, EH 50, EH 75 und EH 22/400 |
Aufnahme | rund Ø27 x 80 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 13 x 50 mm |
Länge | 260 mm |
Erderdurchmesser | 20 mm |
Tiefenerder Typ | Z, AZ |
Référence de la pièce 625009 HE TE 25 R27 LVH WN STBLANK
GTIN 4013364118126, Clients tariffs no (UE): 82079099, Poids brut: 2.80 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | BH 55, BH 65, BH 55rw, EH 50, EH 75 und EH 22/400 |
Aufnahme | rund Ø27 x 80 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 16 x 55 mm |
Länge | 260 mm |
Erderdurchmesser | 25 mm |
Tiefenerder Typ | Z |
Référence de la pièce 620007 HE TE 20 SW22 VH AC STBLANK
GTIN 4013364027084, Clients tariffs no (UE): 82079099, Poids brut: 1.08 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | Cobra Combi, Pionjär 120+130, CP Red Hawk (Cobra Standard) |
Aufnahme | sechskant SW22 x 108 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 13 x 50 mm |
Länge | 240 mm |
Erderdurchmesser | 20 mm |
Tiefenerder Typ | Z, AZ |
Référence de la pièce 625007 HE TE 25 SW22 VH AC STBLANK
GTIN 4013364027091, Clients tariffs no (UE): 82079099, Poids brut: 1.03 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | Cobra Combi, Pionjär 120+130, CP Red Hawk (Cobra Standard) |
Aufnahme | sechskant SW22 x 108 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 16 x 55 mm |
Länge | 240 mm |
Erderdurchmesser | 25 mm |
Tiefenerder Typ | Z |
Référence de la pièce 620008 HE TE 20 SW25 VH AC STBLANK
GTIN 4013364066151, Clients tariffs no (UE): 82079099, Poids brut: 1.44 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | TEX 15 PE, 19 PE, 23 PE |
Aufnahme | sechskant SW25 x 108 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 13 x 50 mm |
Länge | 240 mm |
Erderdurchmesser | 20 mm |
Tiefenerder Typ | Z, AZ |
Référence de la pièce 625008 HE TE 25 SW25 VH AC STBLANK
GTIN 4013364066144, Clients tariffs no (UE): 82079099, Poids brut: 1.41 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | TEX 15 PE, 19 PE, 23 PE |
Aufnahme | sechskant SW25 x 108 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 16 x 55 mm |
Länge | 240 mm |
Erderdurchmesser | 25 mm |
Tiefenerder Typ | Z |
Référence de la pièce 620019 HE TE 20 SW28 VH AC STBLANK
GTIN 4013364027008, Clients tariffs no (UE): 82079099, Poids brut: 1.98 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | TEX 28 HE, 27 H, 15 PE, 19 PE, 23 PE, 22 PS |
Aufnahme | sechskant SW28 x 160 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 13 x 50 mm |
Länge | 350 mm |
Erderdurchmesser | 20 mm |
Tiefenerder Typ | Z, AZ |
Référence de la pièce 625019 HE TE 25 SW28 VH AC STBLANK
GTIN 4013364027015, Clients tariffs no (UE): 82079099, Poids brut: 2.08 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | TEX 28 HE, 27 H, 15 PE, 19 PE, 23 PE, 22 PS |
Aufnahme | sechskant SW28 x 160 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 16 x 55 mm |
Länge | 350 mm |
Erderdurchmesser | 25 mm |
Tiefenerder Typ | Z |
Référence de la pièce 620010 HE TE 20 SW32 VH AC STBLANK
GTIN 4013364244764, Clients tariffs no (UE): 82079099, Poids brut: 2.31 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | TT, PRO, MK1 |
Aufnahme | sechskant SW32 x 160 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 13 x 50 mm |
Länge | 350 mm |
Erderdurchmesser | 20 mm |
Tiefenerder Typ | Z, AZ |
Référence de la pièce 625010 HE TE 25 SW32 VH AC STBLANK
GTIN 4013364157613, Clients tariffs no (UE): 82079099, Poids brut: 2.25 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | TT, PRO, MK1 |
Aufnahme | sechskant SW32 x 160 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 16 x 55 mm |
Länge | 350 mm |
Erderdurchmesser | 25 mm |
Tiefenerder Typ | Z, AZ |
Référence de la pièce 620029 HE TE 20 SW28 VH BO STBLANK
GTIN 4013364066113, Clients tariffs no (UE): 82079099, Poids brut: 1.43 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | GSH 27 / TE 3000 AVR (bis Modell 2021) / K 2628 H |
Aufnahme | sechskant SW28 (1 1/8'') |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 13 x 50 mm |
Länge | 250 mm |
Erderdurchmesser | 20 mm |
Tiefenerder Typ | Z, AZ |
Référence de la pièce 625029 HE TE 25 SW28 VH BO STBLANK
GTIN 4013364066120, Clients tariffs no (UE): 82079099, Poids brut: 1.41 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | GSH 27 / TE 3000 AVR (bis Modell 2021) / K 2628 H |
Aufnahme | sechskant SW28 (1 1/8'') |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 16 x 55 mm |
Länge | 250 mm |
Erderdurchmesser | 25 mm |
Tiefenerder Typ | Z |
Référence de la pièce 620031 HE TE 20 TES VH HI STBLANK
GTIN 4013364244849, Clients tariffs no (UE): 82079099, Poids brut: 1.13 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | Vibrations- / Schlaghämmer mit TE-S-Aufnahme |
Aufnahme | sechskant SW22 |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 13 x 50 mm |
Länge | 280 mm |
Erderdurchmesser | 20 mm |
Tiefenerder Typ | Z, AZ |
Référence de la pièce 625031 HE TE 25 TES VH HI STBLANK
GTIN 4013364244856, Clients tariffs no (UE): 82079099, Poids brut: 1.44 kg, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | Vibrations- / Schlaghämmer mit TE-S-Aufnahme |
Aufnahme | sechskant SW22 |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 16 x 55 mm |
Länge | 280 mm |
Erderdurchmesser | 25 mm |
Tiefenerder Typ | Z |
Référence de la pièce 620030 HE TE 20 SDS MAX VH STBLANK
GTIN 4013364244818, Clients tariffs no (UE): 82079099, Poids brut: 800.00 g, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | Vibrations- / Schlaghämmer mit SDS-max-Aufnahme |
Aufnahme | rund Ø18 x 175 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 13 x 50 mm |
Länge | 260 mm |
Erderdurchmesser | 20 mm |
Tiefenerder Typ | Z, AZ |
Hinweis: Es wird empfohlen einen Hammer mit einer Schlagkraft von Minimum 26 Joule zu verwenden. Die maximale Eintreibtiefe ist von der Bodenbeschaffenheit abhängig. |
Référence de la pièce 625030 HE TE 25 SDS MAX VH STBLANK
GTIN 4013364244825, Clients tariffs no (UE): 82079099, Poids brut: 760.00 g, Prix unitaire: 1.00 Stk.
Caractéristiques techniques
Typ | Vibrations- / Schlaghämmer mit SDS-max-Aufnahme |
Aufnahme | rund Ø18 x 175 mm |
Werkstoff | St/blank |
Bohrung (d1 x l1) | 16 x 55 mm |
Länge | 260 mm |
Erderdurchmesser | 25 mm |
Tiefenerder Typ | Z |
Hinweis: Es wird empfohlen einen Hammer mit einer Schlagkraft von Minimum 26 Joule zu verwenden. Die maximale Eintreibtiefe ist von der Bodenbeschaffenheit abhängig. |
