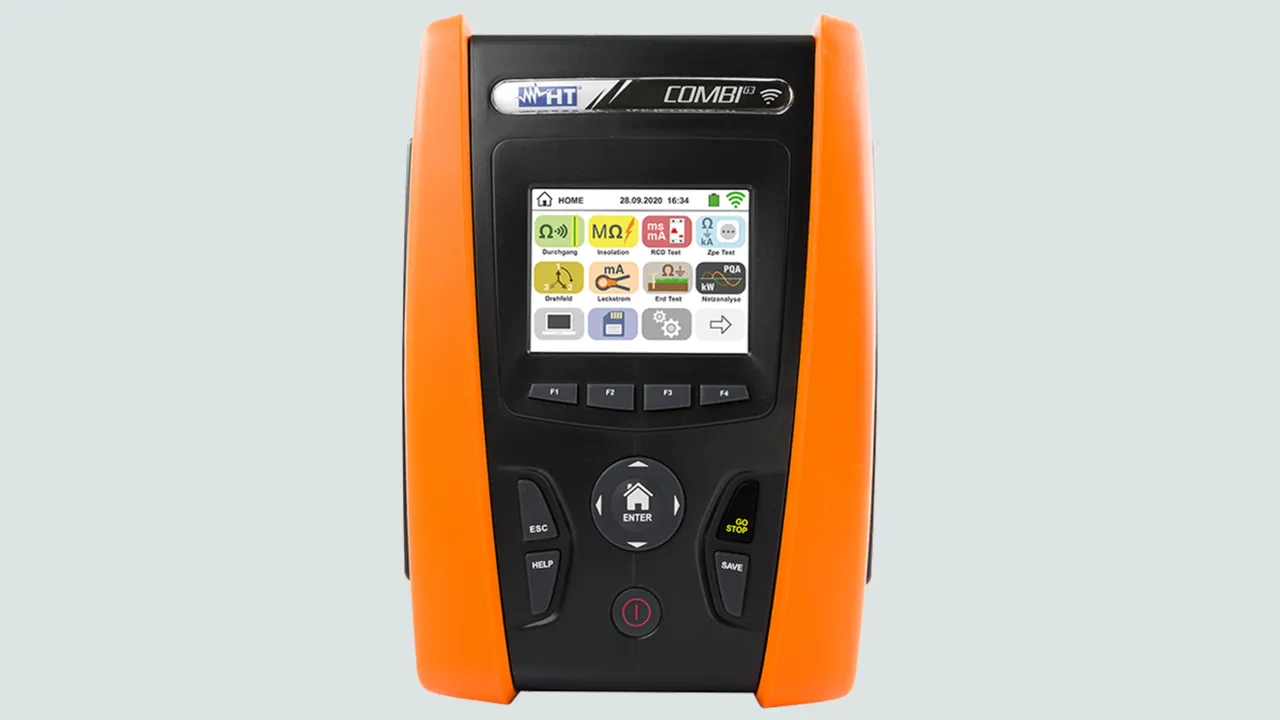

Installation test device HT COMBI G3
:quality(98)/www.dehn.fr/store/f/54552759/HDVORSCHAU/578323_16-9.jpg)
:quality(98)/www.dehn.fr/store/f/54552759/HDVORSCHAU/578323_16-9.jpg)
VDE0100 / VDE 0105 installation test device Can be used for low-impedance, loop impedance and insulation measurement.For testing the continuity of steel reinforcements in reinforced concrete with 10A test current as per IEC/EN 62305-3. (Necessary accessories: EQUITEST 10 A – part no.: 578 321)Additional measuring methods:Earthing measurement with 2 and 3-conductor methodEarthing measurement with optional earth resistance clamp meter (tongs T2100 – part no.: 578 322)Earth resistance measurement with 4-conductor methodWide range of accessories:
- Robust transport case
- 6 rechargeable batteries (NiMH 1.2 V AA)
- External charger
- Universal KIT: 4 measuring lines + 4 alligator clips + 3 test prods
- 3-conductor Schuko cable (L 1,500 mm)
- Stylus
- Quick guide and operating instructions
- ISO9000 calibration certificate
- TOPVIEW software + USB connecting cable
Référence de la pièce 578323 COMBI G3
GTIN 4013364538634, Clients tariffs no (UE): 90318080, Poids brut: 1.25 kg, Prix unitaire: 1.00 pc(s)
Images
:quality(98)/www.dehn.fr/store/f/54552763/HDVORSCHAU/578323.jpg)
:quality(98)/www.dehn.fr/store/f/54552763/HDVORSCHAU/578323.jpg)
Certificats
Caractéristiques techniques
| Display | Colour touchscreen with backlight |
| Resistance measuring range | 0.001 to 99.9 Ω |
| Test current | 0.2 and 10 A (with EQUITEST 10 A accessory) |
| Test function | 2, 3 and 4-conductor |
| Interface | Optically isolated on USB, Wi-Fi integrated |
| Internal test memory | 999 measurements |
| Dimensions (l x w x d) | 235 x 165 x 75 mm |
