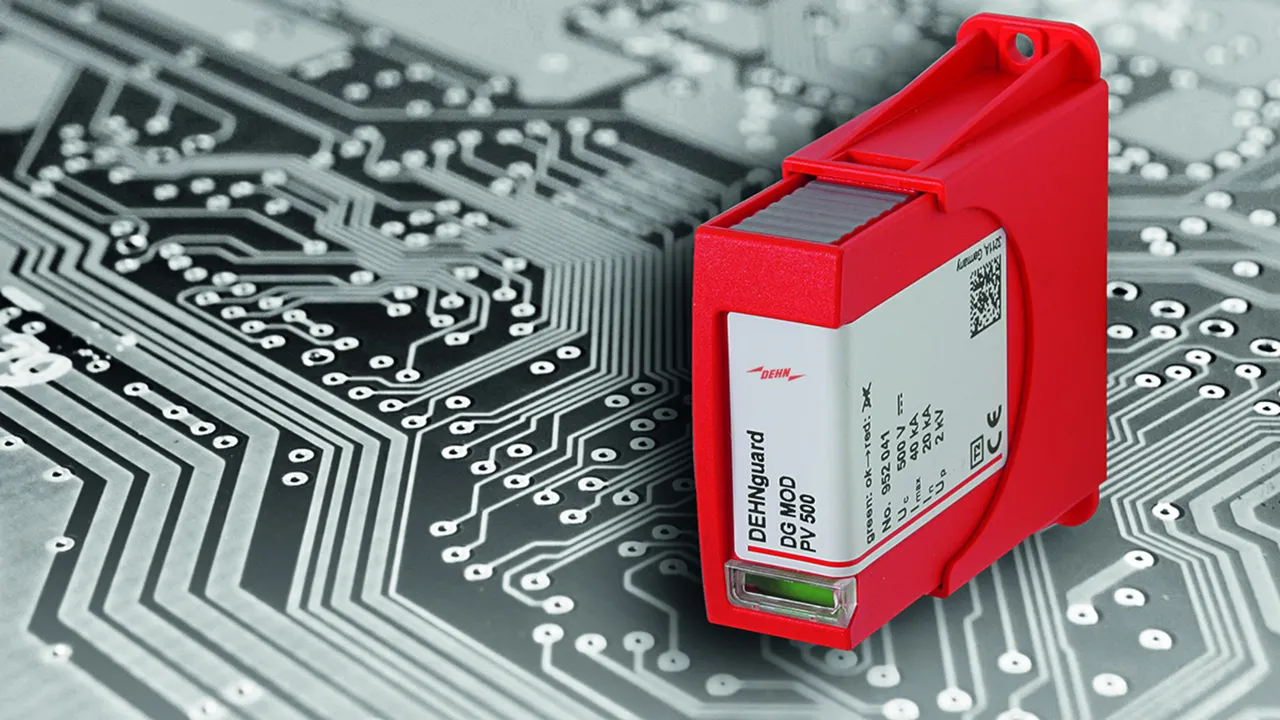

DEHNguard PCB

  • Base for DEHNguard protection modules to be mounted on and integrated in PCBs
  • Optimal integration of a type 2 arrester in devices
  • Easy and flexible use for all circuit configurations
  • Proven DEHNguard modules ensure high performance
  • Coded base and protection module guard against installing an incorrect module
  • Version with and without remote signalling contact for the monitoring device
  • Versions for maximum requirements on clearances and creepage distances
  • Versions for other DEHNguard protection modules available on request

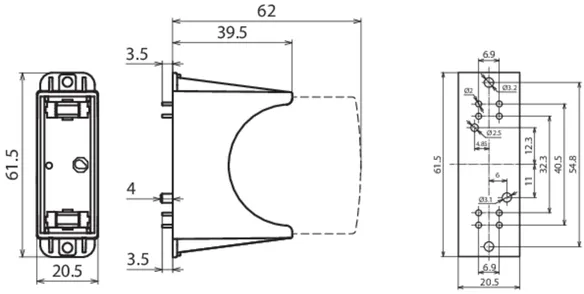

DEHNguard PCB PV SCI ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 Produits

Référence de la pièce 952653 DG PCB PV SCI 300

GTIN 4013364150713, Clients tariffs no (UE): 85366930, Poids brut: 19.89 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV SCI 300 single-pole base
Single-pole base for DEHNguard protection modules
for integration on PCBs
Coded base part and protection module
Mounting via screw and soldered connection on PCBs
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 500 V

Brand: DEHN
Type: DG PCB PV SCI 300
Part No.: 952653
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Le produit 952653 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952653 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952651 DG PCB PV SCI 500

GTIN 4013364146310, Clients tariffs no (UE): 85366930, Poids brut: 19.89 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV SCI 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500
Part No.: 952651
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Le produit 952651 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952651 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952654 DG PCB PV SCI 600

GTIN 4013364149878, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV SCI 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600
Part No.: 952654
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Le produit 952654 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952654 a été ajouté au panier.

Aller à la boutique en ligne

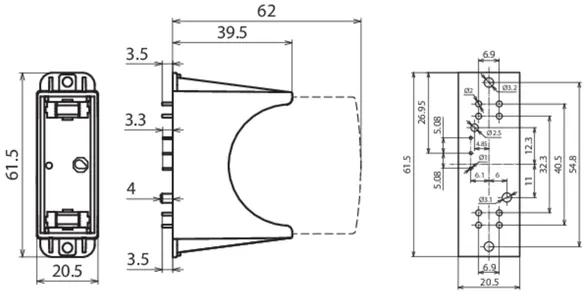

DEHNguard PCB PV SCI ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 Produits

Référence de la pièce 952753 DG PCB PV SCI 300 FM

GTIN 4013364150720, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV SCI 300 FM single-pole base
Single-pole base for DEHNguard protection modules
is mounted and integrated on PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 300 FM
Part No.: 952753
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952753 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952753 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952751 DG PCB PV SCI 500 FM

GTIN 4013364146327, Clients tariffs no (UE): 85366930, Poids brut: 20.49 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV SCI 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500 FM
Part No.: 952751
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952751 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952751 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952754 DG PCB PV SCI 600 FM

GTIN 4013364149885, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV SCI 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600 FM
Part No.: 952754
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952754 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952754 a été ajouté au panier.

Aller à la boutique en ligne

DEHNguard PCB PV ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 Produits

Référence de la pièce 952643 DG PCB PV 300

GTIN 4013364150737, Clients tariffs no (UE): 85366930, Poids brut: 19.89 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV 300 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300
Part No.: 952643
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Le produit 952643 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952643 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952641 DG PCB PV 500

GTIN 4013364146334, Clients tariffs no (UE): 85366930, Poids brut: 19.89 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500
Part No.: 952641
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Le produit 952641 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952641 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952644 DG PCB PV 600

GTIN 4013364149892, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600
Part No.: 952644
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Le produit 952644 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952644 a été ajouté au panier.

Aller à la boutique en ligne

DEHNguard PCB PV ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 Produits

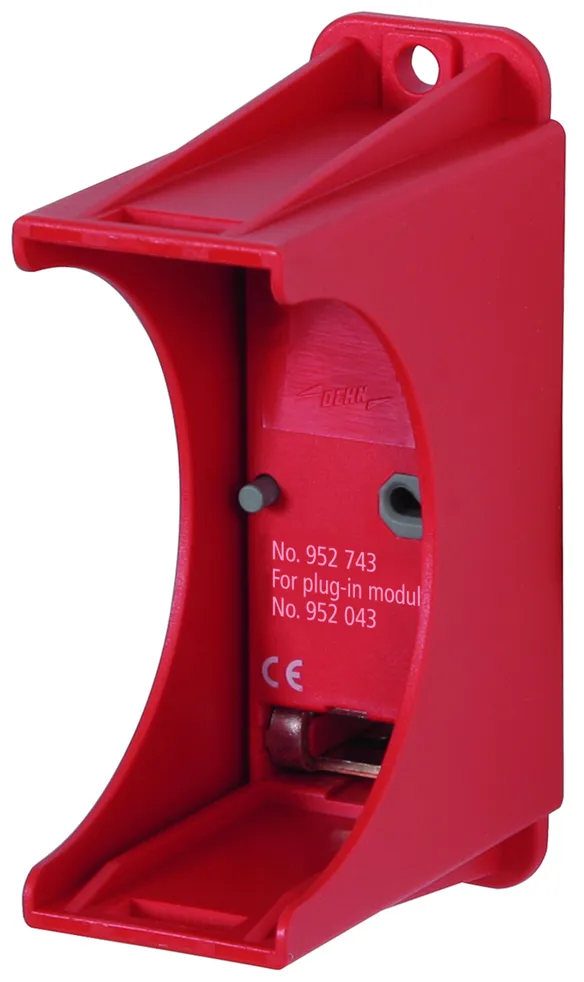

Référence de la pièce 952743 DG PCB PV 300 FM

GTIN 4013364150744, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV 300 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300 FM
Part No.: 952743
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952743 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952743 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952741 DG PCB PV 500 FM

GTIN 4013364146341, Clients tariffs no (UE): 85366930, Poids brut: 20.49 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500 FM
Part No.: 952741
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952741 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952741 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952744 DG PCB PV 600 FM

GTIN 4013364149908, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600 FM
Part No.: 952744
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952744 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952744 a été ajouté au panier.

Aller à la boutique en ligne

DEHNguard PCB ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

2 Produits

Référence de la pièce 952610 DG PCB 275

GTIN 4013364149816, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB 275 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (d.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275
Part No.: 952610
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Le produit 952610 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952610 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952614 DG PCB 385

GTIN 4013364149847, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB 385 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (d.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385
Part No.: 952614
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Le produit 952614 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952614 a été ajouté au panier.

Aller à la boutique en ligne

DEHNguard PCB ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 Produits

Référence de la pièce 952710 DG PCB 275 FM

GTIN 4013364149830, Clients tariffs no (UE): 85366930, Poids brut: 20.59 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275 FM
Part No.: 952710
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952710 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952710 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952714 DG PCB 385 FM

GTIN 4013364149854, Clients tariffs no (UE): 85366930, Poids brut: 20.59 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB 385 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 FM
Part No.: 952714
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952714 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952714 a été ajouté au panier.

Aller à la boutique en ligne

DEHNguard PCB NPE (FM)

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 Produits

Référence de la pièce 952650 DG PCB NPE

GTIN 4013364149823, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB NPE single-pole base
Single-pole base for DEHNguard protection modules
to be integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (d.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE
Part No.: 952650
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Le produit 952650 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952650 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952750 DG PCB NPE FM

GTIN 4013364149861, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB NPE FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE FM
Part No.: 952750
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952750 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952750 a été ajouté au panier.

Aller à la boutique en ligne

DEHNguard PCB PV I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

3 Produits

Référence de la pièce 952941 DG PCB PV I 500 FM

GTIN 4013364228177, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV I 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 500 FM
Part No.: 952941
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952941 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952941 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952948 DG PCB PV I 600 FM

GTIN 4013364323919, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV I 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 600 FM
Part No.: 952948
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952948 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952948 a été ajouté au panier.

Aller à la boutique en ligne

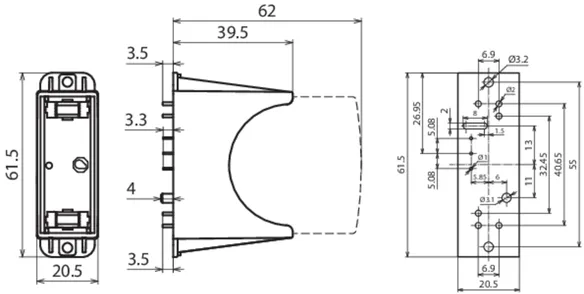

Référence de la pièce 952949 DG PCB PV I 750 FM

GTIN 4013364323926, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PV I 750 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module): 750 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 750 FM
Part No.: 952949
or equivalent.



Caractéristiques techniques

Associated protection module DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module) 750 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952949 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952949 a été ajouté au panier.

Aller à la boutique en ligne

DEHNguard PCB PVSCI I ...FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 Produit

Référence de la pièce 952951 DG PCB PVSCI I 500FM

GTIN 4013364228184, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB PVSCI I 500FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PVSCI I 500FM
Part No.: 952951
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952951 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952951 a été ajouté au panier.

Aller à la boutique en ligne

DEHNguard PCB I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 Produit

Référence de la pièce 952910 DG PCB I 275 FM

GTIN 4013364266865, Clients tariffs no (UE): 85366930, Poids brut: 19.79 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

DEHNguard PCB I 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB I 275 FM
Part No.: 952910
or equivalent.

Certificats



Caractéristiques techniques

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952910 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952910 a été ajouté au panier.

Aller à la boutique en ligne

DG PCB ... UL

2 Produits

Référence de la pièce 952615 DG PCB 385 UL FM

GTIN 4013364535794, Clients tariffs no (UE): 85366930, Poids brut: 20.49 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

Single-pole base DEHNguard DG PCB 385 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 385 (Part No. 908 014)
Max. continuous AC operating voltage (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 UL FM
Part No.: 952615
or equivalent.



Caractéristiques techniques

Associated protection module DG PLU 385 (Part No. 908 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952615 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952615 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952616 DG PCB 510 UL FM

GTIN 4013364535800, Clients tariffs no (UE): 85366930, Poids brut: 20.49 g, Prix unitaire: 72.00 pc(s)

Images

Plus d'informations

Single-pole base DEHNguard DG PCB 510 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 510 (Part No. 908 013)
Max. continuous AC operating voltage (module): 510 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 510 UL FM
Part No.: 952616
or equivalent.



Caractéristiques techniques

Associated protection module DG PLU 510 (Part No. 908 013)
Max. continuous operating voltage (a.c.) (module) 510 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Le produit 952616 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952616 a été ajouté au panier.

Aller à la boutique en ligne
back to top
