Roof Conductor Holders Adjustable for Ridge and Hip Tiles

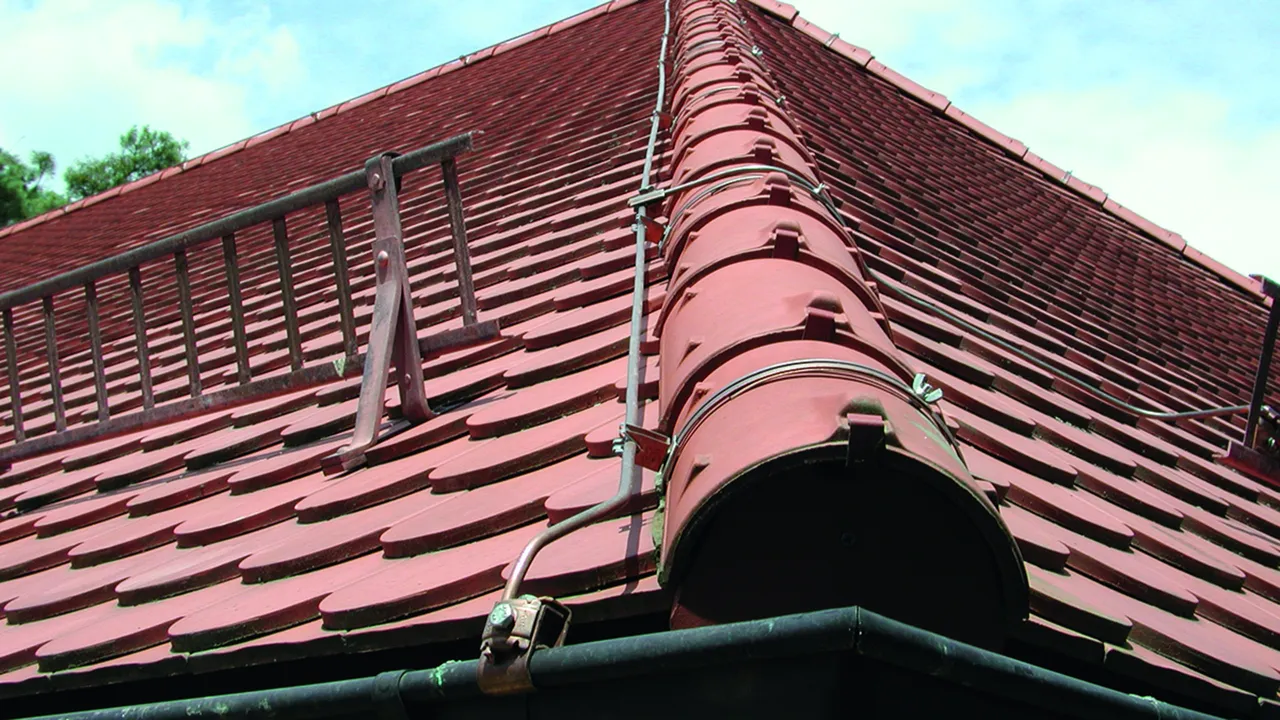

For fixing air-termination conductors on the ridge, e.g. of tile roofs.

Steplessly adjustable with conductor holder DEHNsnap

Loose conductor routing, laterally adjustable (top centre to the bottom).

6 Produits

Référence de la pièce 204109 DLH DS 8 H16 FG180.280 GR V2A

GTIN 4013364028098, Clients tariffs no (UE): 85389099, Poids brut: 103.64 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNsnap conductor holder, grey, StSt, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, adjustable on the side (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280 GR V2A
Part No.: 204109
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Le produit 204109 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 204109 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 204911 DLH DS 8 H16 FG180.280 BR V2A

GTIN 4013364030640, Clients tariffs no (UE): 85389099, Poids brut: 104.04 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNsnap conductor holder, brown, StSt, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge e.g., for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280 BR V2A
Part No.: 204911
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Le produit 204911 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 204911 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 204107 DLH DS 8 H16 FG180.280BR GALCU

GTIN 4013364028104, Clients tariffs no (UE): 85389099, Poids brut: 111.04 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNsnap conductor holder, brown, Cu, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280BR GALCU
Part No.: 204107
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Le produit 204107 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 204107 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 204129 DLH DS 8 H36 FG180.280 GR V2A

GTIN 4013364021433, Clients tariffs no (UE): 85389099, Poids brut: 108.04 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNsnap conductor holder, grey, StSt, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280 GR V2A
Part No.: 204129
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Le produit 204129 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 204129 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 204913 DLH DS 8 H36 FG180.280 BR V2A

GTIN 4013364030664, Clients tariffs no (UE): 85389099, Poids brut: 114.04 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNsnap conductor holder, brown, StSt, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280 BR V2A
Part No.: 204913
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Le produit 204913 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 204913 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 204127 DLH DS 8 H36 FG180.280BR GALCU

GTIN 4013364028142, Clients tariffs no (UE): 85389099, Poids brut: 116.24 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNsnap conductor holder, Cu, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280BR GALCU
Part No.: 204127
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Le produit 204127 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 204127 a été ajouté au panier.

Aller à la boutique en ligne

Steplessly adjustable with conductor holder DEHNgrip

Loose conductor routing, laterally adjustable (top centre to the bottom).

5 Produits

Référence de la pièce 206109 DLH DG 8 H20 FG180.280 V2A

GTIN 4013364042810, Clients tariffs no (UE): 85389099, Poids brut: 116.00 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNgrip conductor holder, StSt, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 V2A
Part No.: 206109
or equivalent.



Caractéristiques techniques

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 23 mm
Standard EN 62561-4

Le produit 206109 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 206109 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 206809 DLH DG 8 H20 FG180.280 KK V2A

GTIN 4013364077485, Clients tariffs no (UE): 85389099, Poids brut: 120.34 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNgrip conductor holder, StSt, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 KK V2A
Part No.: 206809
or equivalent.



Caractéristiques techniques

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Le produit 206809 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 206809 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 206807 DLH DG 8 H20 FG180.280 KK GALCU

GTIN 4013364046306, Clients tariffs no (UE): 85389099, Poids brut: 113.04 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNgrip conductor holder, Cu, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 KK GALCU
Part No.: 206807
or equivalent.



Caractéristiques techniques

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Le produit 206807 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 206807 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 206817 DLH DG 8 H32 FG180.280 KK GALCU

GTIN 4013364078581, Clients tariffs no (UE): 85389099, Poids brut: 128.04 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNgrip conductor holder, Cu, height of conductor holder: 32 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally on the side (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DG 8 H32 FG180.280 KK GALCU
Part No.: 206817
or equivalent.



Caractéristiques techniques

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Le produit 206817 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 206817 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 206819 DLH DG 8 H32 FG180.280 KK V2A

GTIN 4013364077362, Clients tariffs no (UE): 85389099, Poids brut: 121.04 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNgrip conductor holder, StSt, height of conductor holder: 32 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H32 FG180.280 KK V2A
Part No.: 206819
or equivalent.



Caractéristiques techniques

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Le produit 206819 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 206819 a été ajouté au panier.

Aller à la boutique en ligne

Adjustable in steps with conductor holder DEHNquick

Fixed conductor routing.

5 Produits

Référence de la pièce 202020 DLH DQ 6.10 FG120.240 STTZN

GTIN 4013364020764, Clients tariffs no (UE): 85389099, Poids brut: 259.92 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNQUICK conductor holder, St/tZn, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: St/tZn
Clamping range: 120-240 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 STTZN
Part No.: 202020
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder St/tZn
Clamping range 120-240 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Le produit 202020 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 202020 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 202021 DLH DQ 6.10 FG200.280 STTZN

GTIN 4013364020788, Clients tariffs no (UE): 85389099, Poids brut: 273.92 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

DEHNQUICK conductor holder, St/tZn, clamping range: 200-280 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: St/tZn
Clamping range: 200-280 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 FG200.280 STTZN
Part No.: 202021
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder St/tZn
Clamping range 200-280 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Le produit 202021 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 202021 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 202900 DLH DQ 6.10 FG120.240 V2A

GTIN 4013364020801, Clients tariffs no (UE): 85389099, Poids brut: 133.24 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

DEHNQUICK conductor holder, StSt, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: StSt
Clamping range: 120-240 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 V2A
Part No.: 202900
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder StSt
Clamping range 120-240 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Le produit 202900 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 202900 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 202027 DLH DQ 6.10 FG120.240 CU

GTIN 4013364020771, Clients tariffs no (UE): 85389099, Poids brut: 299.92 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

DEHNQUICK conductor holder, Cu, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: Cu
Clamping range: 120-240 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 CU
Part No.: 202027
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder Cu
Clamping range 120-240 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Le produit 202027 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 202027 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 202227 DLH DQ 6.10 FG200.280 CU

GTIN 4013364020795, Clients tariffs no (UE): 85389099, Poids brut: 299.92 g, Prix unitaire: 25.00 pc(s)

Images

Plus d'informations

DEHNQUICK conductor holder, Cu, clamping range: 200-280 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: Cu
Clamping range: 200-280 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DQ 6.10 FG200.280 CU
Part No.: 202227
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder Cu
Clamping range 200-280 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Le produit 202227 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 202227 a été ajouté au panier.

Aller à la boutique en ligne
back to top
