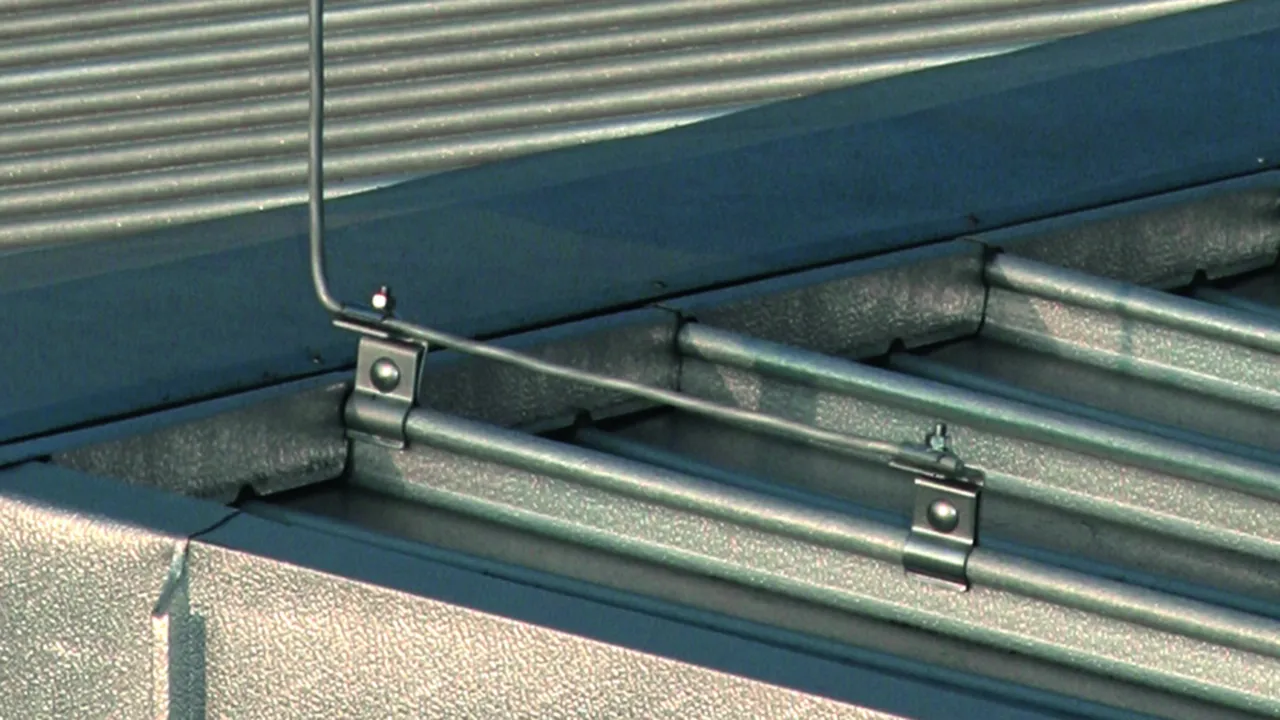

Roof Conductor Holders for Metal Roofs

For fixing additional air-termination systems on metal roofs.
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile, a lightning current carrying capability of 100 kA (10/350 µs) is provided.

For roofs with round standing seam, with clamping piece

2 Produits

Référence de la pièce 223010 DLH KB 6.10 RSF20.25 V2A

GTIN 4013364092778, Clients tariffs no (UE): 85389099, Poids brut: 186.30 g, Prix unitaire: 50.00 pc(s)

Images

Plus d'informations

Roof conductor holder for metal roofs with a StSt clamping piece (round standing seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or air-termination rods on metal
roofs e.g. Part No. 123 021
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: StSt
Clamping range: Ø20-25 mm
Type of conductor holder: clamping piece
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Brand: DEHN
Type: DLH KB 6.10 RSF20.25 V2A
Part No.: 223010
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder StSt
Clamping range Ø20-25 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1
*) For exact assignment, see test certificate.

Le produit 223010 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 223010 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 223040 DLH KB 6.10 RSF20.25 AL

GTIN 4013364096752, Clients tariffs no (UE): 85389099, Poids brut: 102.30 g, Prix unitaire: 50.00 pc(s)

Images

Plus d'informations

Roof conductor holder for metal roofs with clamping piece Al (round standing seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or air-termination rods on metal
roofs e.g. Part No. 123 021
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: Al
Clamping range: Ø20-25 mm
Type of conductor holder: clamping piece
Material of conductor holder: Al
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Brand: DEHN
Type: DLH KB 6.10 RSF20.25 AL
Part No.: 223040
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder Al
Clamping range Ø20-25 mm
Material of conductor holder Al
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1
*) For exact assignment, see test certificate.

Le produit 223040 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 223040 a été ajouté au panier.

Aller à la boutique en ligne

For roofs with round standing seam, with DEHNgrip

2 Produits

Référence de la pièce 223011 DLH DG 8 RSF20.25 V2A

GTIN 4013364092785, Clients tariffs no (UE): 85389099, Poids brut: 170.02 g, Prix unitaire: 50.00 pc(s)

Images

Plus d'informations

Roof conductor holder for metal roofs with DEHNgrip, StSt (round standing seam)
Roof conductor holder for fixing additional air-termination systems such as air-termination conductors on metal roofs.


Material of roof conductor holder: StSt
Clamping range: Ø20-25 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Brand: DEHN
Type: DLH DG 8 RSF20.25 V2A
Part No.: 223011
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder StSt
Clamping range Ø20-25 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

Le produit 223011 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 223011 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 223041 DLH DG 8 RSF20.25 AL

GTIN 4013364096769, Clients tariffs no (UE): 85389099, Poids brut: 99.02 g, Prix unitaire: 50.00 pc(s)

Images

Plus d'informations

Roof conductor holder for metal roofs with DEHNgrip, Al (round standing seam)
Roof conductor holder for fixing additional air-termination systems such as air-termination conductors on metal roofs.

Material of roof conductor holder: Al
Clamping range: Ø20-25 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Brand: DEHN
Type: DLH DG 8 RSF20.25 AL
Part No.: 223041
or equivalent.



Caractéristiques techniques

Material of roof conductor holder Al
Clamping range Ø20-25 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

Le produit 223041 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 223041 a été ajouté au panier.

Aller à la boutique en ligne

For roofs with clamping seam, with clamping piece (e.g. RIB ROOF Speed 500 by Zambelli)

1 Produit

Référence de la pièce 223070 DLH KB 6.10 KF18.22 AL

GTIN 4013364108738, Clients tariffs no (UE): 85389099, Poids brut: 105.62 g, Prix unitaire: 50.00 pc(s)

Images

Plus d'informations

Roof conductor holder for metal roofs with clamping piece, Al (clamping seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or conductors on metal roofs (e.g. Part No. 123 021).
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: Al
Clamping range: approx. 18 / 22 mm
Type of conductor holder: clamping piece
Material of conductor holder: Al
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Brand: DEHN
Type: DLH KB 6.10 KF18.22 AL
Part No.: 223070
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder Al
Clamping range approx. 18 / 22 mm
Material of conductor holder Al
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1
*) For exact assignment, see test certificate.

Le produit 223070 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 223070 a été ajouté au panier.

Aller à la boutique en ligne

For roofs with clamping seam, with DEHNgrip (e.g. RIB-ROOF Speed 500 by Zambelli)

1 Produit

Référence de la pièce 223071 DLH DG 8 KF18.22 AL

GTIN 4013364108745, Clients tariffs no (UE): 85389099, Poids brut: 96.80 g, Prix unitaire: 50.00 pc(s)

Images

Plus d'informations

Roof conductor holder for metal roofs with DEHNgrip conductor holder (clamping seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems
Material of roof conductor holder: Al
Clamping range: approx. 18 / 22 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-1

Brand: DEHN
Type: DLH DG 8 KF18.22 AL
Part No.: 223071
or equivalent.



Caractéristiques techniques

Material of roof conductor holder Al
Clamping range approx. 18 / 22 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-1

Le produit 223071 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 223071 a été ajouté au panier.

Aller à la boutique en ligne

For roofs with standing seam, with clamping piece

1 Produit

Référence de la pièce 365059 FK KB 6.10 KBF0.7 8 W V2A

GTIN 4013364091856, Clients tariffs no (UE): 85359000, Poids brut: 136.30 g, Prix unitaire: 50.00 pc(s)

Images

Plus d'informations

Seam clamps with increased connection area (angled), StSt
Seam clamp with enlarged contact surface for fixing additional air-termination systems or air-termination rods on metal roofs (e.g. Part No. 123 021).
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: StSt
Clamping range: 0.7-8 mm
Type of conductor holder: clamping piece
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 8 W V2A
Part No.: 365059
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder StSt
Clamping range 0.7-8 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1

Le produit 365059 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 365059 a été ajouté au panier.

Aller à la boutique en ligne

For roofs with standing seam, with DEHNgrip

1 Produit

Référence de la pièce 223031 DLH DG 8 SF0.7 8 V2A

GTIN 4013364092815, Clients tariffs no (UE): 85389099, Poids brut: 119.30 g, Prix unitaire: 50.00 pc(s)

Images

Plus d'informations

Roof conductor holder for metal roofs with DEHNgrip, StSt (standing seam)
Roof conductor holder for fixing additional air-termination systems on metal roofs.

Material of roof conductor holder: StSt
Clamping range: 0.7-8 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Brand: DEHN
Type: DLH DG 8 SF0.7 8 V2A
Part No.: 223031
or equivalent.



Caractéristiques techniques

Material of roof conductor holder StSt
Clamping range 0.7-8 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

Le produit 223031 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 223031 a été ajouté au panier.

Aller à la boutique en ligne

For trapezoidal roofs, with clamping piece

Hung into the fixing screws of the roof.

1 Produit

Référence de la pièce 223020 DLH KB 6.10 TD B8.5 V2A

GTIN 4013364092792, Clients tariffs no (UE): 85389099, Poids brut: 123.30 g, Prix unitaire: 50.00 pc(s)

Images

Plus d'informations

Roof conductor holder for metal roofs with clamping piece, StSt (trapezoidal)
Roof conductor holder for metal roofs for fixing additional air-termination systems on metal roofs.

Material of roof conductor holder: StSt
Type of conductor holder: clamping piece
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed

Brand: DEHN
Type: DLH KB 6.10 TD B8.5 V2A
Part No.: 223020
or equivalent.

Certificats



Caractéristiques techniques

Material of roof conductor holder StSt
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed

Le produit 223020 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 223020 a été ajouté au panier.

Aller à la boutique en ligne

For trapezoidal roofs, with DEHNgrip

Hung into the fixing screws of the roof.

1 Produit

Référence de la pièce 223021 DLH DG 8 TD B8.5 V2A

GTIN 4013364092808, Clients tariffs no (UE): 85389099, Poids brut: 105.30 g, Prix unitaire: 50.00 pc(s)

Images

Plus d'informations

Roof conductor holder for metal roofs with DEHNgrip, StSt (trapezoidal)
Roof conductor holder for metal roofs for fixing additional air-termination systems on metal roofs.

Material of roof conductor holder: StSt
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Brand: DEHN
Type: DLH DG 8 TD B8.5 V2A
Part No.: 223021
or equivalent.



Caractéristiques techniques

Material of roof conductor holder StSt
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

Le produit 223021 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 223021 a été ajouté au panier.

Aller à la boutique en ligne
