DEHNrail modular

  • Two-pole surge arrester consisting of a base part and a plug-in protection module

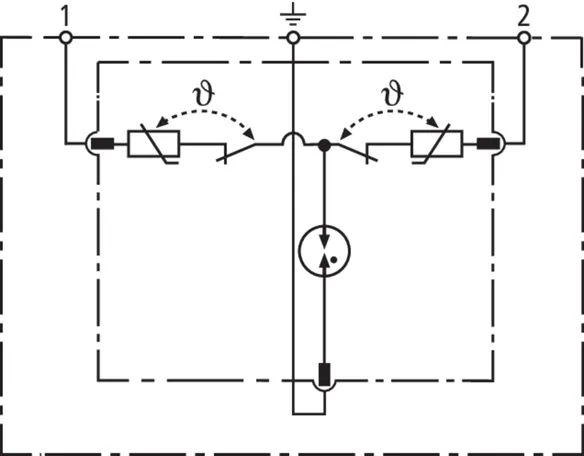

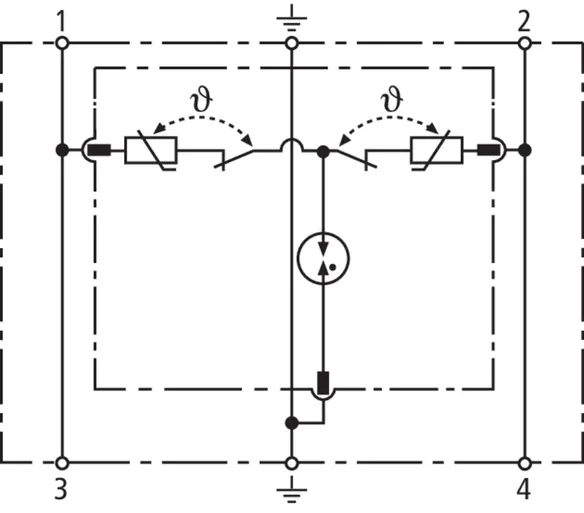

  • High discharge capacity due to heavy-duty zinc oxide varistor / spark gap combination
  • Energy coordination with other arresters of the Red/Line product family
  • Operating state / fault indication by green / red indicator flag in the inspection window

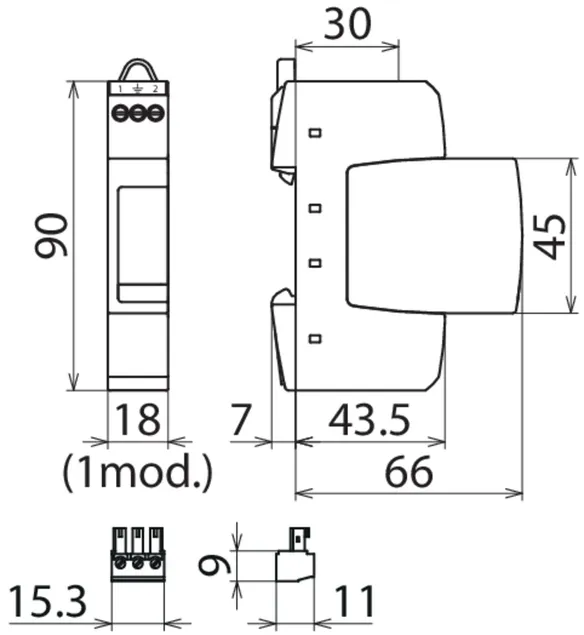

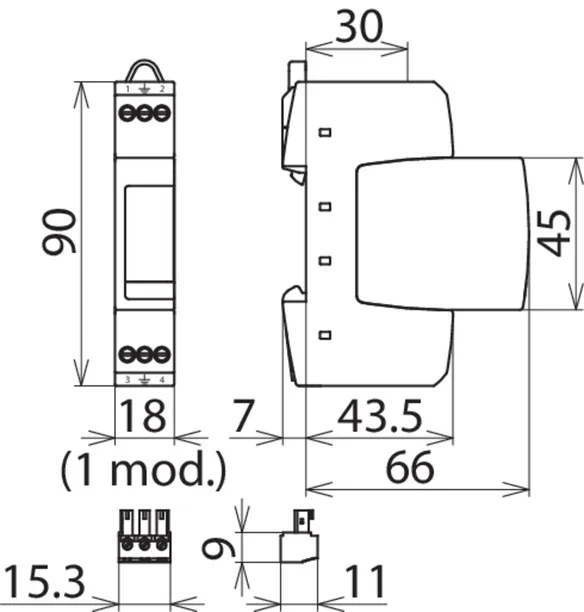

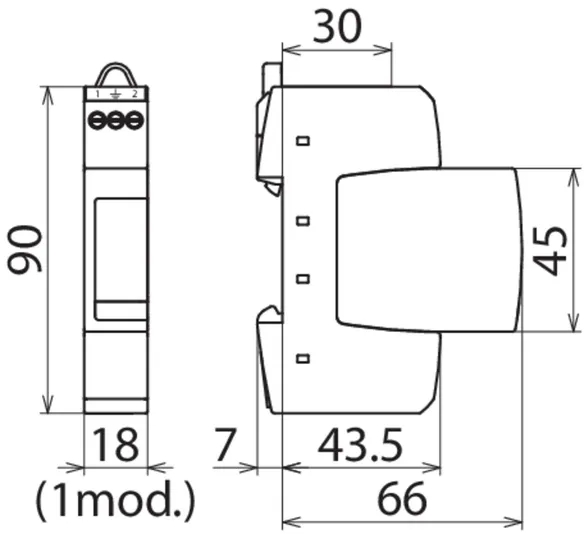

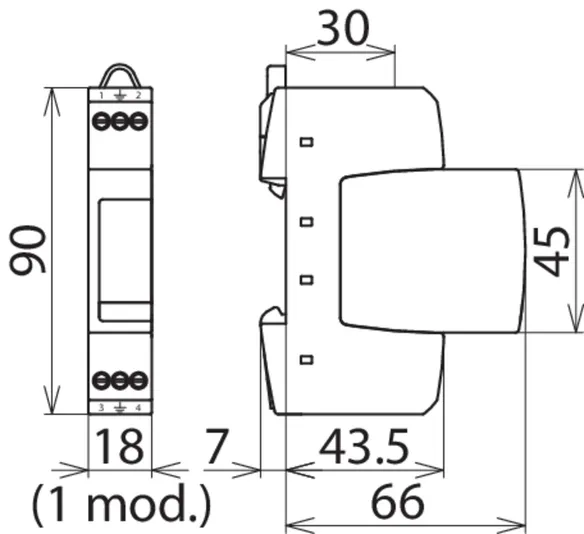

  • Narrow (modular) design according to DIN 43880
  • Easy replacement of protection modules due to module locking system with module release button
  • Vibration and shock-tested according to EN 60068-2

Détails

lorem ipsum

DEHNrail M 2P ...

Two-pole surge arrester consisting of a base part and a plug-in protection module.

5 Produits

Référence de la pièce 953201 DR M 2P 30

GTIN 4013364109674, Clients tariffs no (UE): 85363030, Poids brut: 90.60 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

DEHNrail M 2P 30 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 30 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.18 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line family

Brand: DEHN
Type: DR M 2P 30
Part No.: 953201
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 30 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 30 V
Nominal discharge current (8/20 µs) (In ) 1 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 2 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 180 / ≤ 630 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx

Le produit 953201 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 953201 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 953202 DR M 2P 60

GTIN 4013364109681, Clients tariffs no (UE): 85363030, Poids brut: 91.80 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

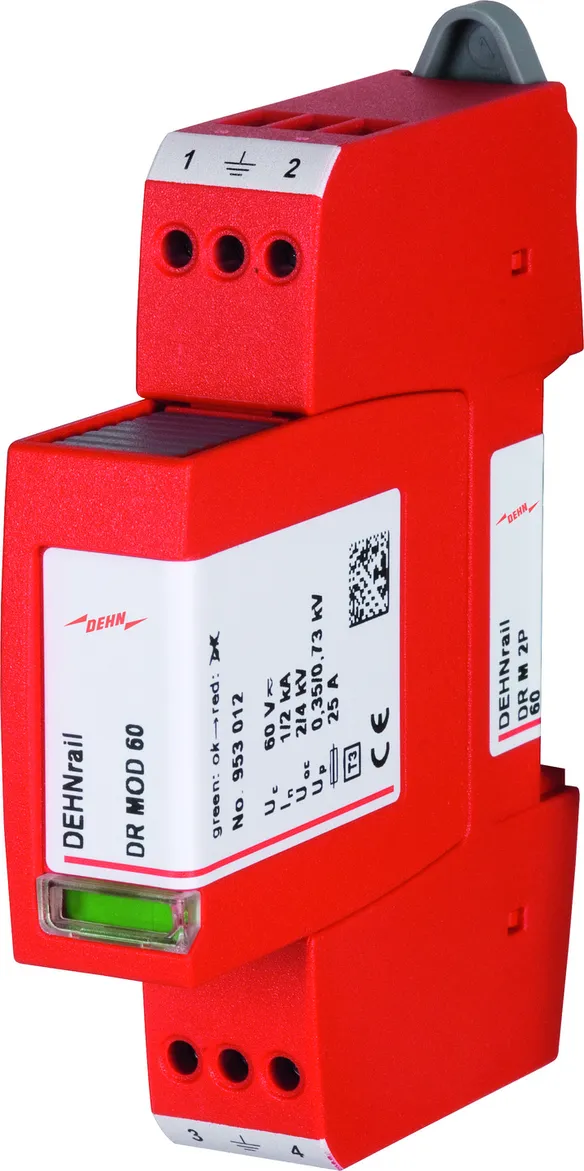

DEHNrail M 2P 60 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 60 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.35 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 60
Part No.: 953202
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 60 V
Nominal discharge current (8/20 µs) (In ) 1 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 2 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 350 / ≤ 730 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx

Le produit 953202 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 953202 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 953203 DR M 2P 75

GTIN 4013364109698, Clients tariffs no (UE): 85363030, Poids brut: 89.80 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

DEHNrail M 2P 75 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.4 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 75
Part No.: 953203
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 75 V
Nominal discharge current (8/20 µs) (In ) 2 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 4 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 400 / ≤ 730 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx

Le produit 953203 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 953203 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 953204 DR M 2P 150

GTIN 4013364109704, Clients tariffs no (UE): 85363030, Poids brut: 90.00 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

DEHNrail M 2P 150 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 150 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.64 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 150
Part No.: 953204
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 150 V
Nominal discharge current (8/20 µs) (In ) 2 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 4 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 640 / ≤ 800 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx

Le produit 953204 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 953204 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 953200 DR M 2P 255

GTIN 4013364108301, Clients tariffs no (UE): 85363030, Poids brut: 91.70 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

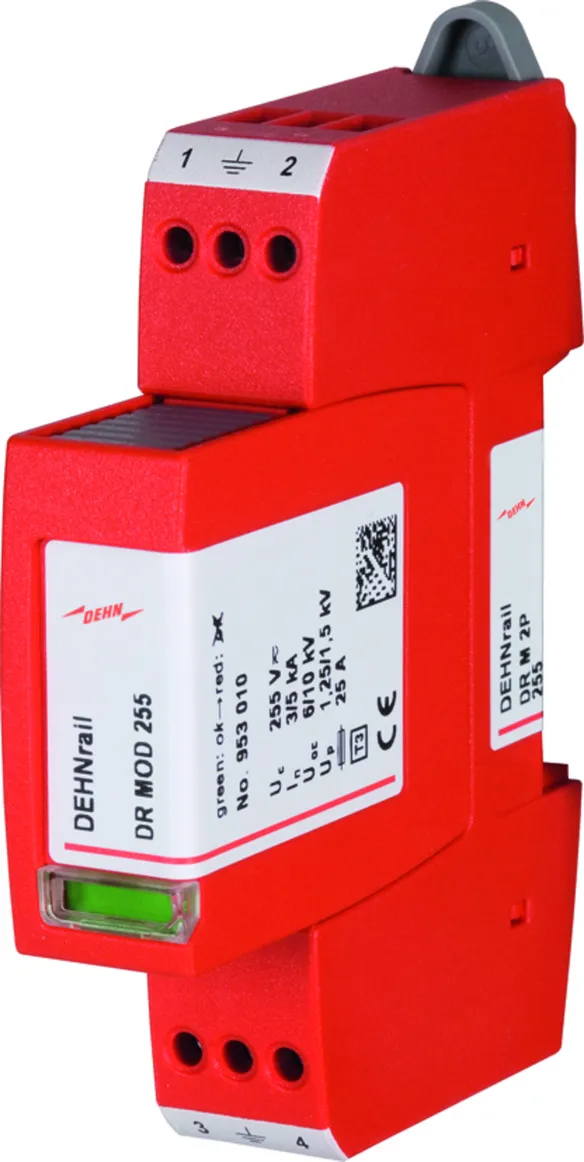

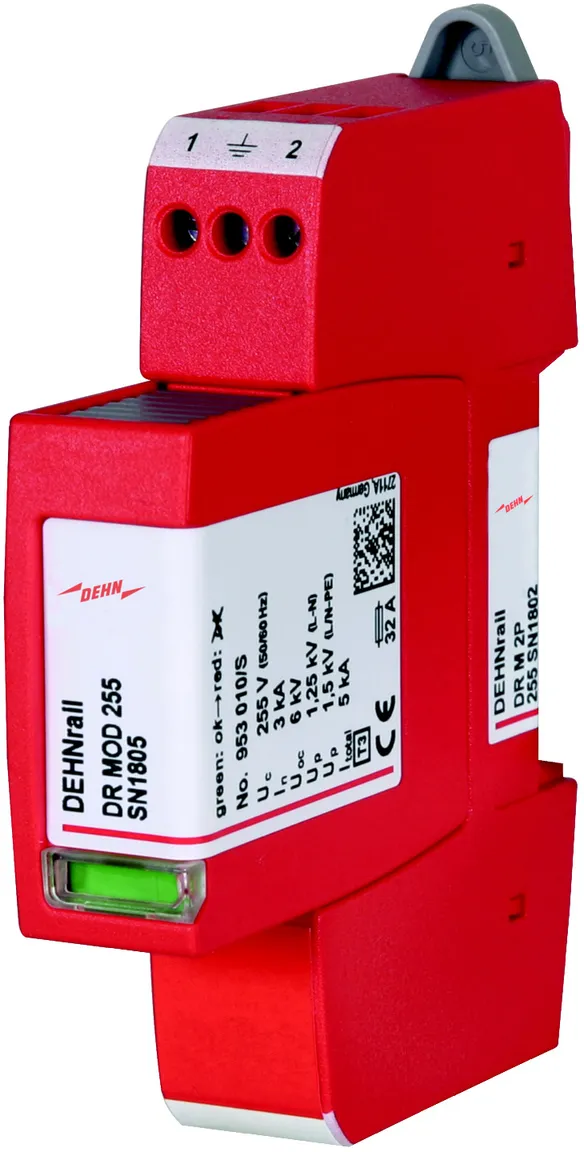

DEHNrail M 2P 255 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 255 V a.c./d.c.
Total discharge current: 5 kA
Voltage protection level (L/N): < 1.25 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 255
Part No.: 953200
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 255 V
Nominal discharge current (8/20 µs) (In ) 3 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 5 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx

Le produit 953200 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 953200 a été ajouté au panier.

Aller à la boutique en ligne

DEHNrail M 2P ... FM

Two-pole surge arrester consisting of a base part and a plug-in protection module; with floating remote signalling contact.

5 Produits

Référence de la pièce 953206 DR M 2P 30 FM

GTIN 4013364109711, Clients tariffs no (UE): 85363030, Poids brut: 94.50 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

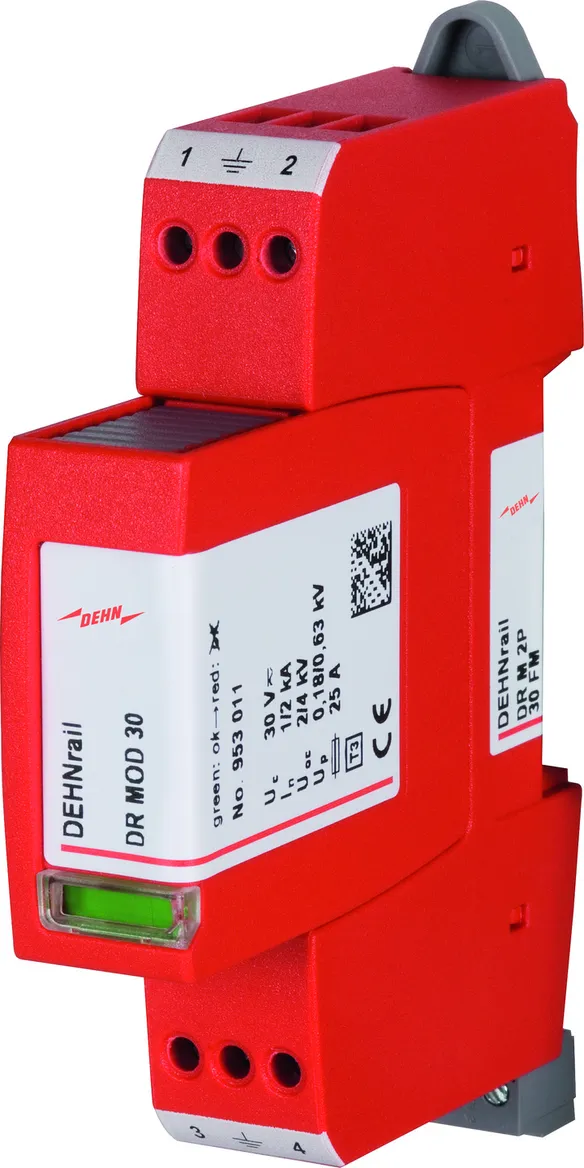

DEHNrail M 2P 30 FM surge arrester
Modular and pluggable two-pole surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication

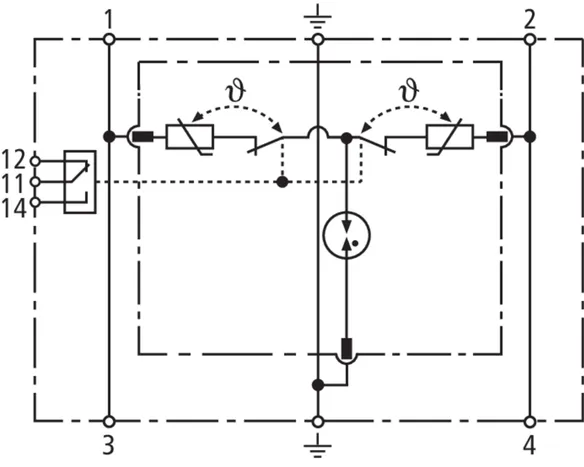

With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 30 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.18 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 30 FM
Part No.: 953206
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 30 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 30 V
Nominal discharge current (8/20 µs) (In ) 1 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 2 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 180 / ≤ 630 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact changeover contact

Le produit 953206 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 953206 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 953207 DR M 2P 60 FM

GTIN 4013364109728, Clients tariffs no (UE): 85363030, Poids brut: 95.40 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

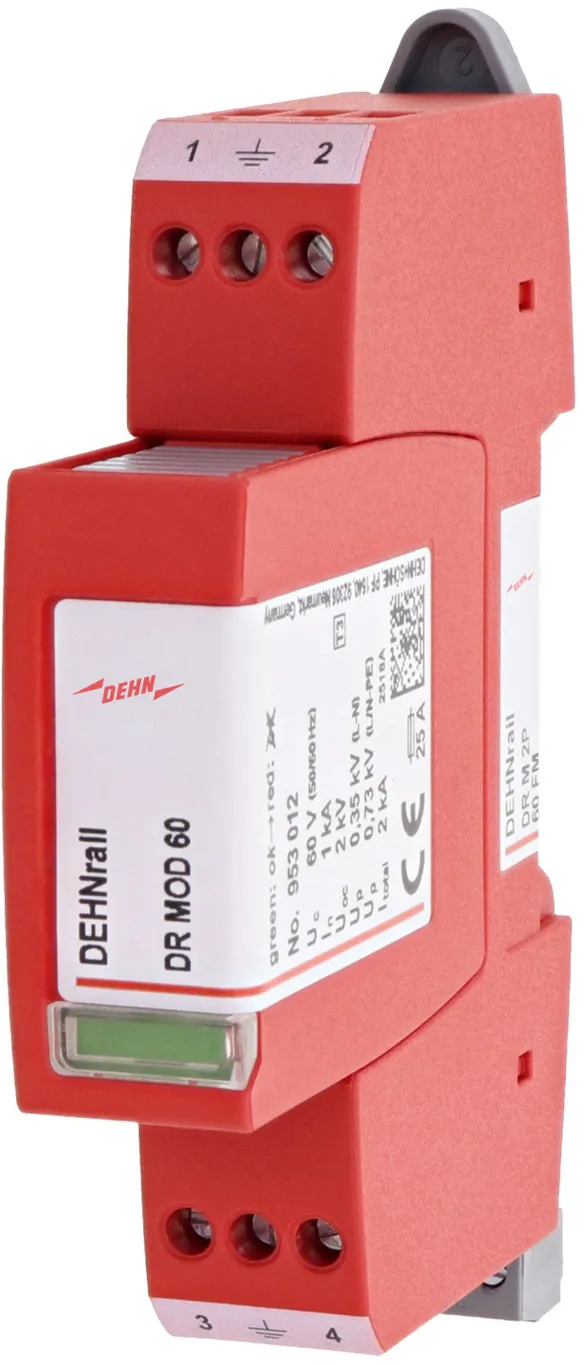

Two-pole DEHNrail M 2P 60 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 60 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.35 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 60 FM
Part No.: 953207
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 60 V
Nominal discharge current (8/20 µs) (In ) 1 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 2 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 350 / ≤ 730 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact changeover contact

Le produit 953207 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 953207 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 953208 DR M 2P 75 FM

GTIN 4013364109735, Clients tariffs no (UE): 85363030, Poids brut: 93.70 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

Two-pole DEHNrail M 2P 75 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.4 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 75 FM
Part No.: 953208
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 75 V
Nominal discharge current (8/20 µs) (In ) 2 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 4 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 400 / ≤ 730 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact changeover contact

Le produit 953208 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 953208 a été ajouté au panier.

Aller à la boutique en ligne

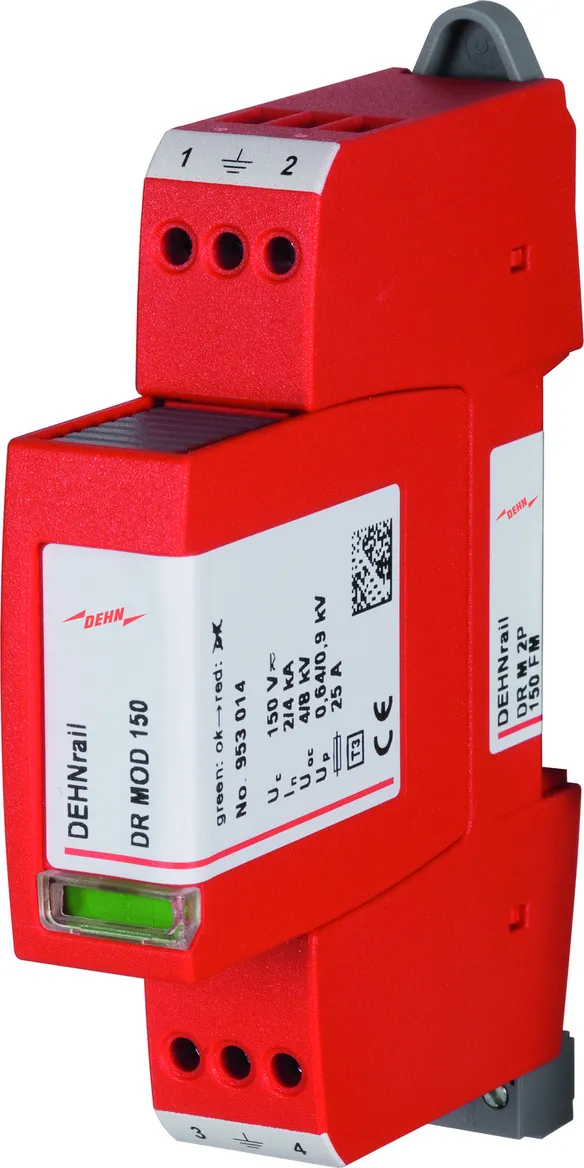

Référence de la pièce 953209 DR M 2P 150 FM

GTIN 4013364109742, Clients tariffs no (UE): 85363030, Poids brut: 93.00 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

DEHNrail M 2P 150 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 150 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.64 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Fault indication

Brand: DEHN
Type: DR M 2P 150 FM
Part No.: 953209
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 150 V
Nominal discharge current (8/20 µs) (In ) 2 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 4 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 640 / ≤ 800 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact changeover contact

Le produit 953209 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 953209 a été ajouté au panier.

Aller à la boutique en ligne

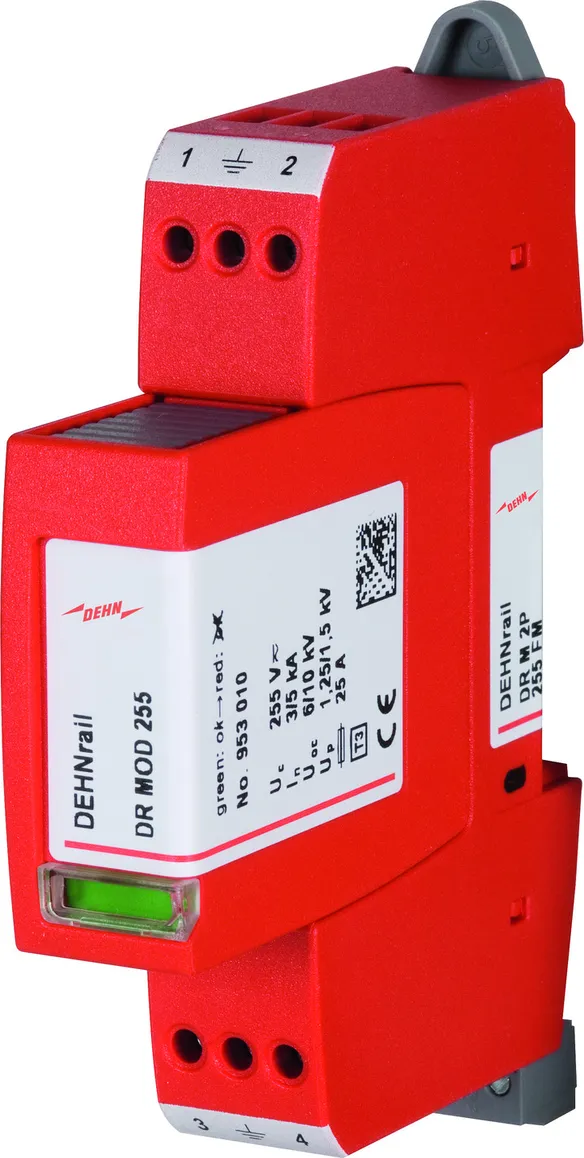

Référence de la pièce 953205 DR M 2P 255 FM

GTIN 4013364108318, Clients tariffs no (UE): 85363030, Poids brut: 98.88 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

Two-pole DEHNrail M 2P 255 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 255 V a.c./d.c.
Total discharge current: 5 kA
Voltage protection level (L/N): < 1.25 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 255 FM
Part No.: 953205
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 255 V
Nominal discharge current (8/20 µs) (In ) 3 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 5 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact changeover contact

Le produit 953205 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 953205 a été ajouté au panier.

Aller à la boutique en ligne

DEHNrail M 2P SN1802

Two-pole surge arrester consisting of a base part and a plug-in protection module. Can be used for systems with a load current up to 32 A.

1 Produit

Référence de la pièce 953228 DR M 2P 255 SN1802

GTIN 4013364158986, Clients tariffs no (UE): 85363030, Poids brut: 89.70 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

DEHNrail M 2P 255 SN1802 surge arrester
2-pole modular pluggable surge arrester
for protecting industrial electronic terminal devices
Width: 1 module, Fault indication
Arrester Type 3 acc- to EN 61643-11
Max. contin. operating voltage: 255 V ac/dc
Total discharge current: 5 kA
Protection level L/N: < 1.25 kV
Backup fuse: 32 A gG or B 32 A
Energy-coordinated acc. to IEC 62305-4
with arrester of the Red/Line family

Brand: DEHN
Type: DR M 2P 255 SN1802
Part No.: 953228
or equivalent.



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 255 V
Nominal discharge current (8/20 µs) (In ) 3 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 5 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection 32 A gG or B 32 A
Protection module upon request

Le produit 953228 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 953228 a été ajouté au panier.

Aller à la boutique en ligne

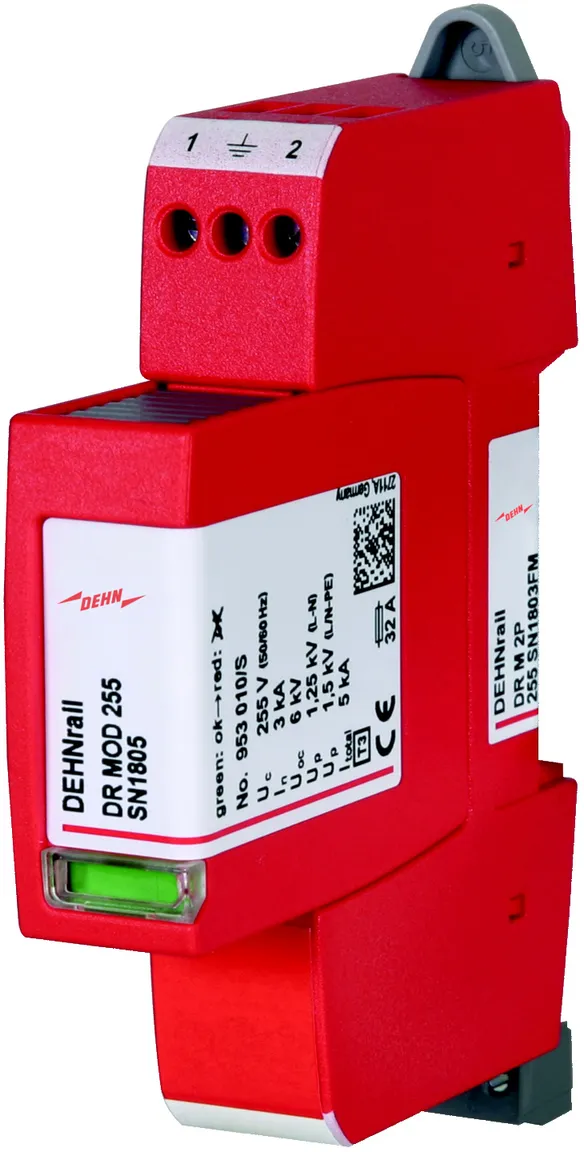

DEHNrail M 2P SN1803FM

Two-pole surge arrester consisting of a base part and a plug-in protection module; with floating remote signalling contact. Can be used for systems with a load current up to 32 A.

1 Produit

Référence de la pièce 953229 DR M 2P 255 SN1803FM

GTIN 4013364158993, Clients tariffs no (UE): 85363030, Poids brut: 93.40 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

DEHNrail M 2P 255 SN1803FM surge arrester
2-pole modular pluggable surge arrester
for protecting industrial electronic terminal devices
Width: 1 module, Fault indication
With remote signalling contact
Arrester Type 3 acc. to EN 61643-11
Max. cont. operating voltage: 255 V ac/dc
Total discharge curremt: 5 kA
Protection level L/N: < 1.25 kV
Backup fuse: 32 A gG or B 32 A
Energy-coordinated acc. to IEC 62305-4
with arresters of the Red/Line family

Brand: DEHN
Type: DR M 2P 255 SN1803FM
Part No.: 953229
or equivalent.



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 255 V
Nominal discharge current (8/20 µs) (In ) 3 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 5 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection 32 A gG or B 32 A
Type of remote signalling contact changeover contact
Protection module upon request

Le produit 953229 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 953229 a été ajouté au panier.

Aller à la boutique en ligne
back to top
