Connecting cable for DEHNcube
:quality(98)/www.dehn.fr/store/f/57073346/HDVORSCHAU/900948a1_16-9.jpg)
:quality(98)/www.dehn.fr/store/f/57073346/HDVORSCHAU/900948a1_16-9.jpg)

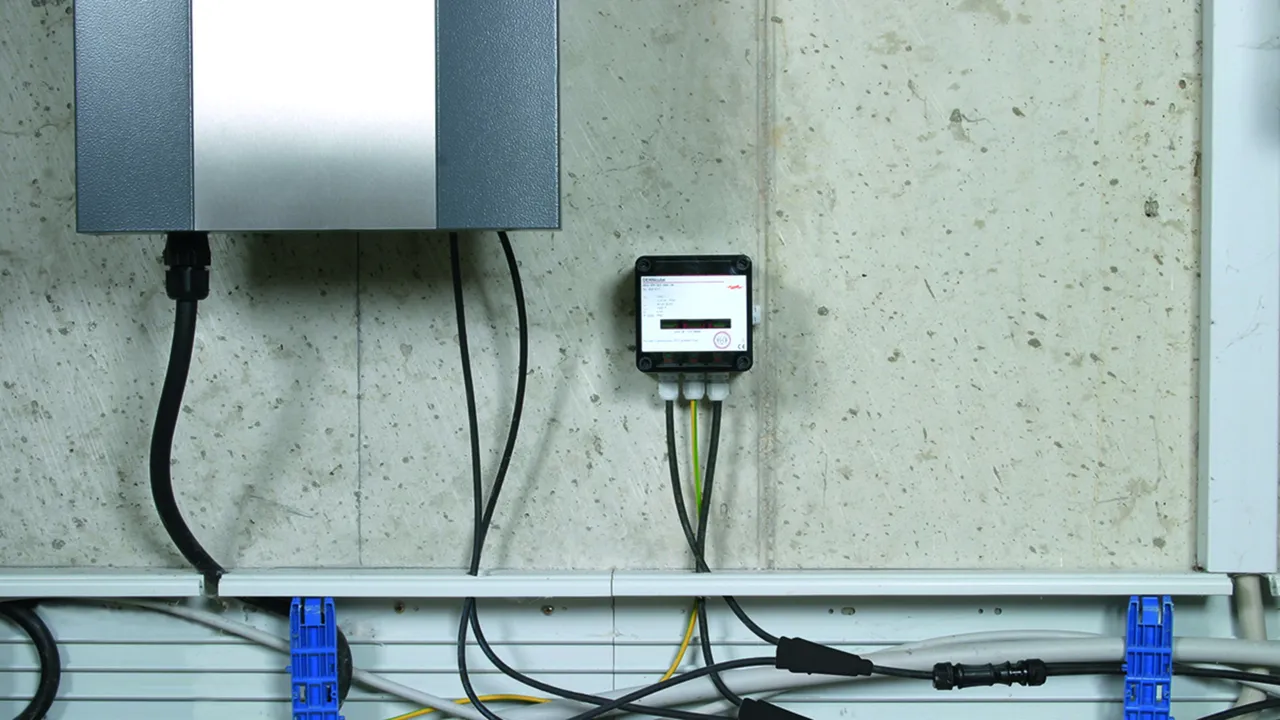

- PV connecting cables for easily connecting DEHNcube YPV SCI 1000 … to the inverter
- Suitable for outdoor use
- 6 mm² for minimum voltage drop
- Cable can be shortened individually to the optimum length
- Unnecessary cable lengths are avoided, thus better protective effect due to lower transmission loss
Détails

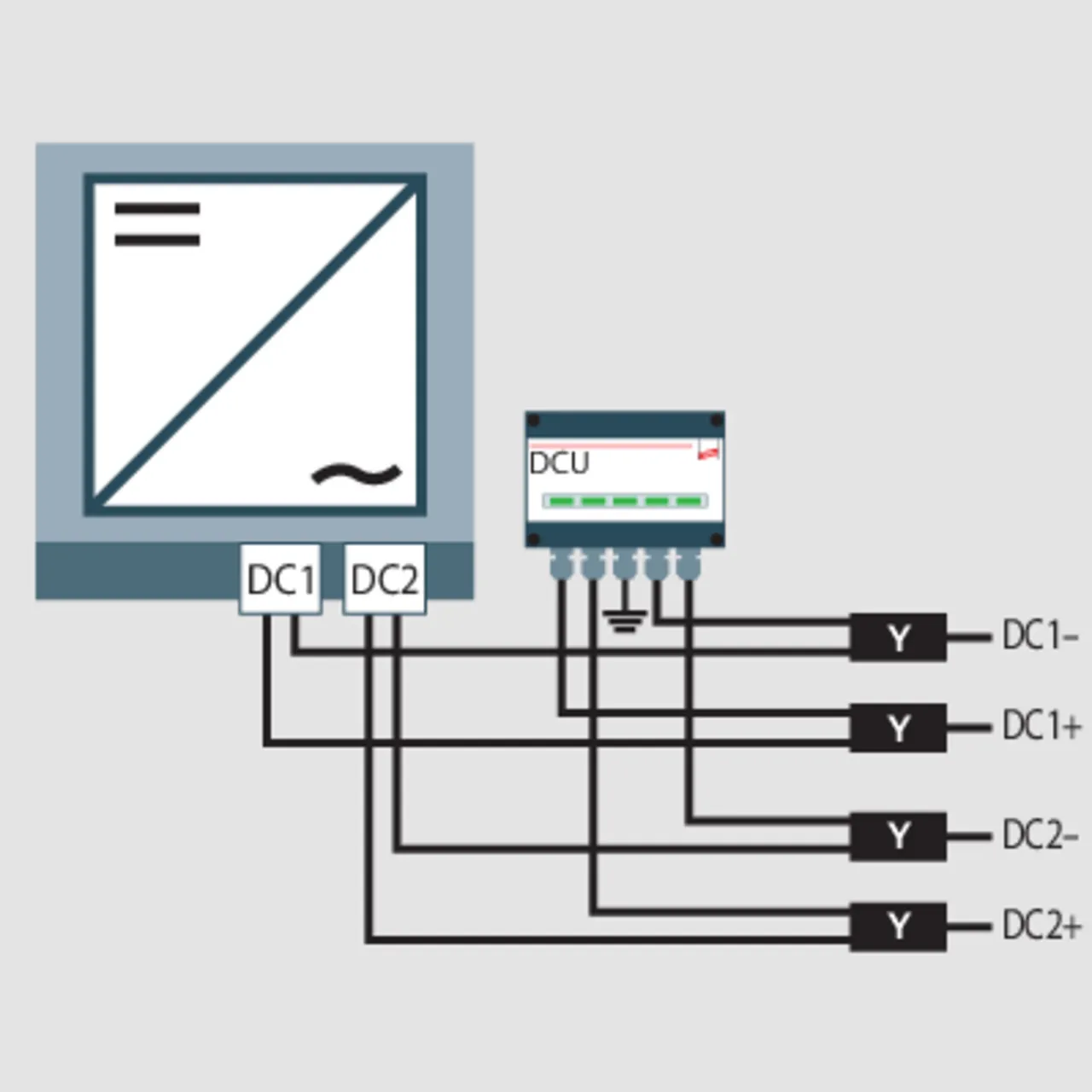

:quality(98)/www.dehn.fr/store/f/57073348/HDVORSCHAU/DEHNcube_Schaltbilder_05_web.jpg)
:quality(98)/www.dehn.fr/store/f/57073348/HDVORSCHAU/DEHNcube_Schaltbilder_05_web.jpg)

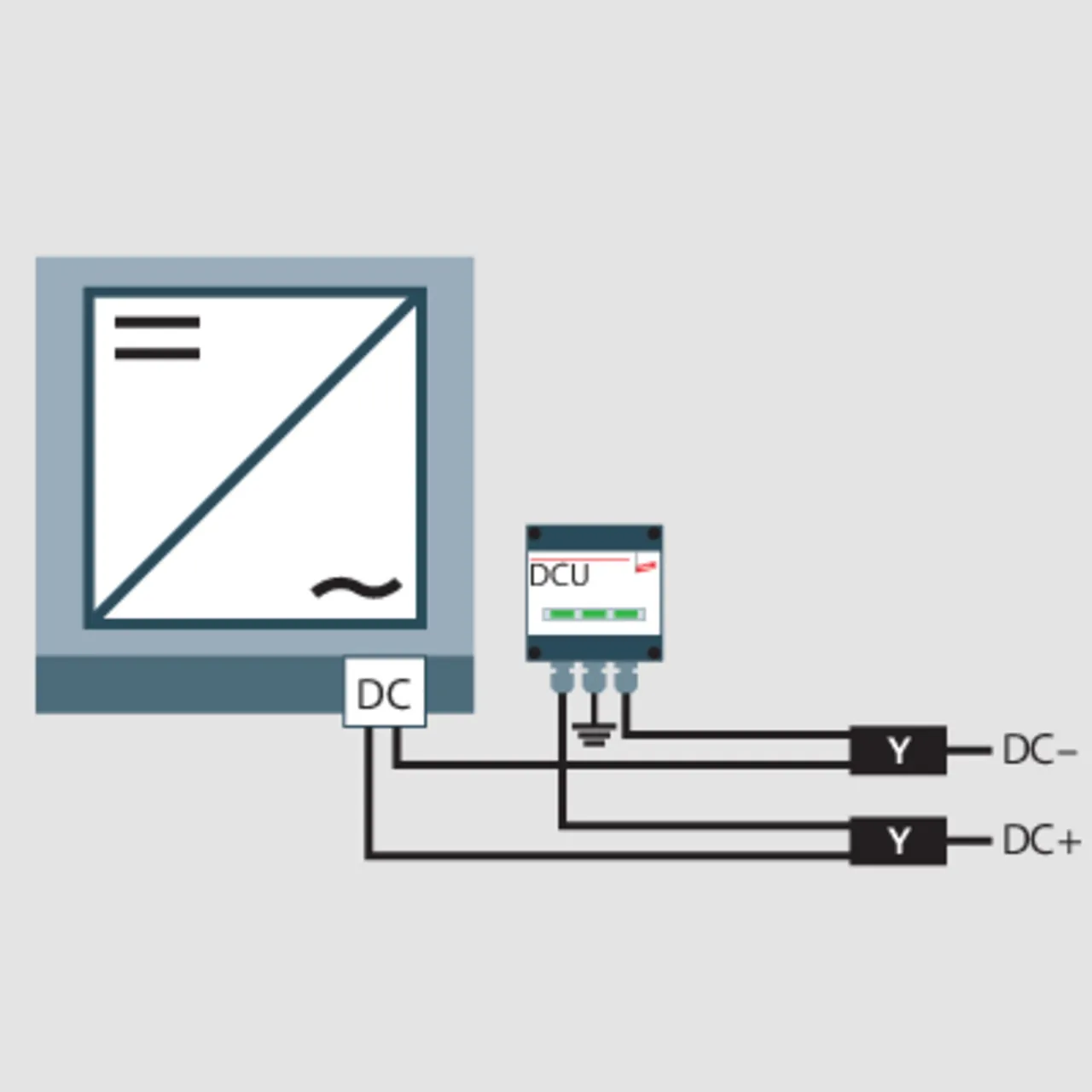

:quality(98)/www.dehn.fr/store/f/57073347/HDVORSCHAU/DEHNcube_Schaltbilder_01_web.jpg)
(MPP tracker) of the inverter.
:quality(98)/www.dehn.fr/store/f/57073347/HDVORSCHAU/DEHNcube_Schaltbilder_01_web.jpg)

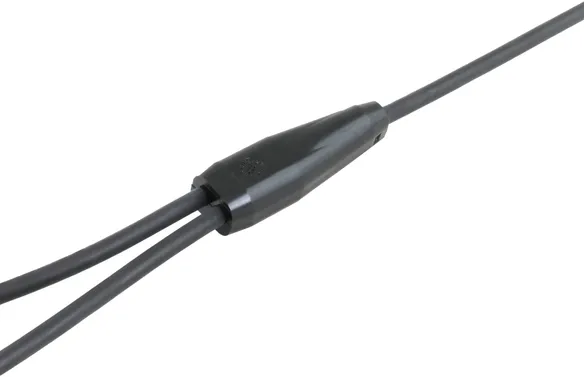

Référence de la pièce 900945 AL DCU Y PV L3X1000
GTIN 4013364425118, Clients tariffs no (UE): 85444991, Poids brut: 230.00 g, Prix unitaire: 1.00 pc(s)
PrécédentCaractéristiques techniques
For connecting | 1 string cable |
Cable cross-section | 6 mm2 |
Cable material | Cu |
Degree of protection | IP 65 |

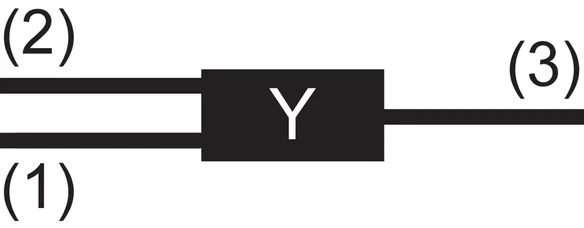

Length (1) [-> inverter] | 1000 mm |
Length (2) [-> DEHNcube] | 1000 mm |
Length (3) [-> +/- string] | 1000 mm |
