MicroΩmeter LoRe EaS

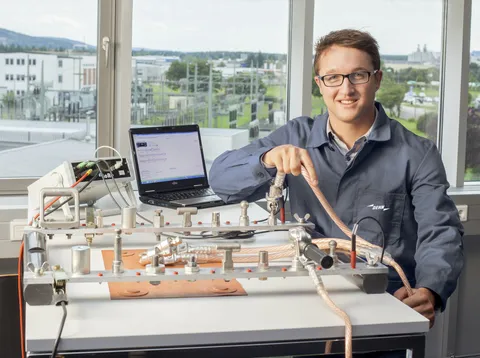

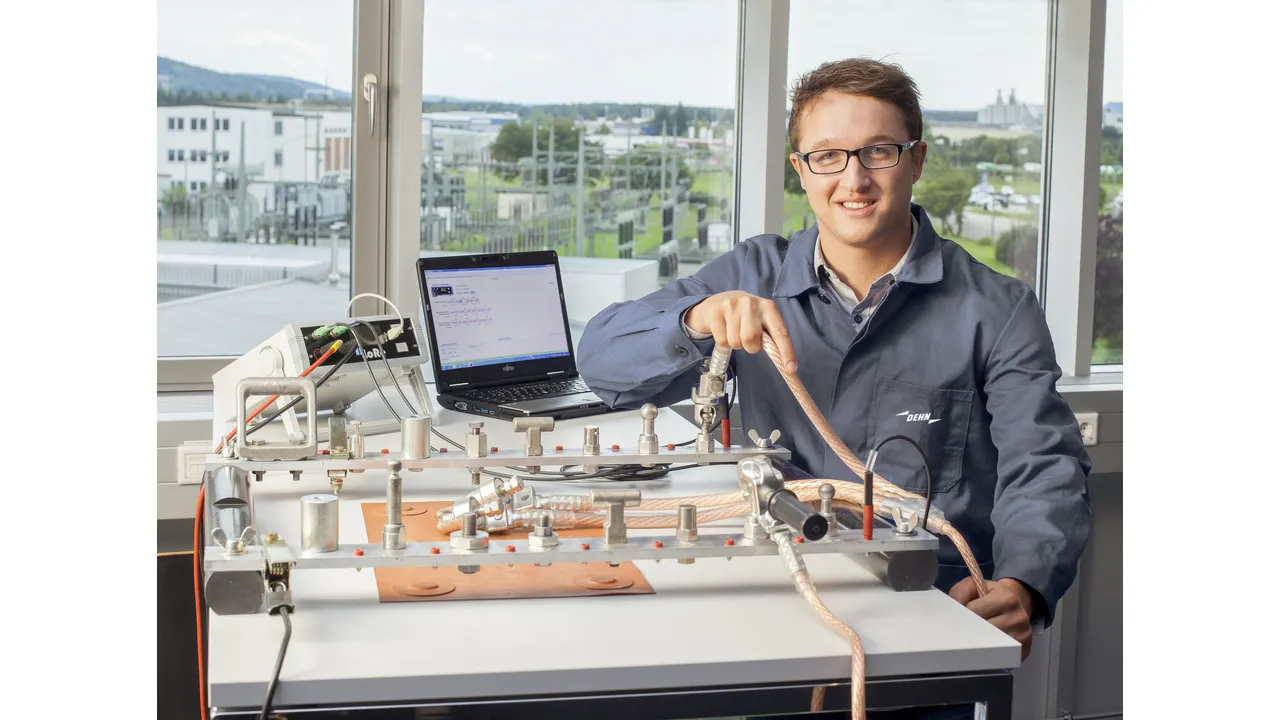

Mobile measuring system for performing technical tests on portable earthing and short-circuiting devices (EaS) at regular intervals
For determining minimum ohmic resistances of earthing and short-circuiting devices and the quality of electrical connections e.g. conductor rails or switch contacts
Electronic transfer of measured values to the evaluation software via USB interface
Software-aided procedure and automatic documentation of results
Acoustic signal as soon as the limit values are exceeded
Calibrated when delivered
Software update via USB interface

MikroΩmeter LoRe EaS

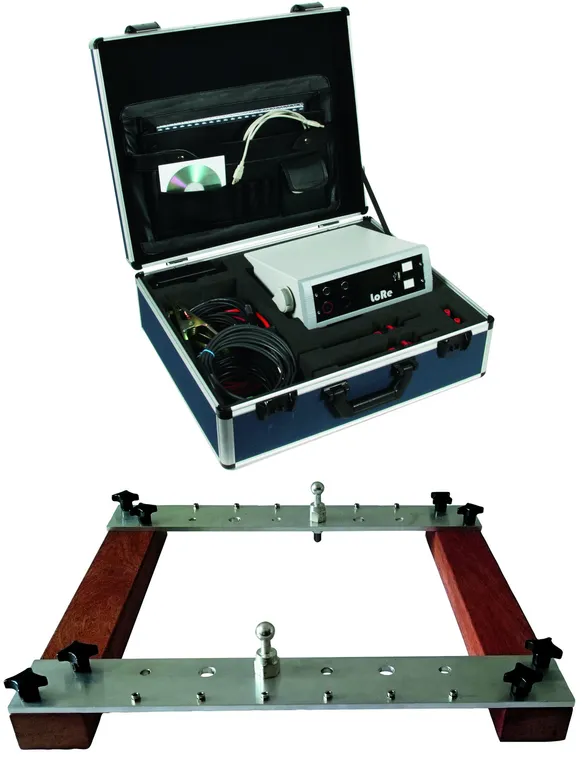

Double rail system included in delivery.

1 Produit

GTIN 4013364237094, Clients tariffs no (UE): 90303370, Poids brut: 16.50 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Certificats

Caractéristiques techniques

Measuring range	0.01 µΩ … 500 mΩ
Min. resolution	1 nΩ
Measuring accuracy	100 nΩ
Type of measurement	Four-conductor measurement
Measuring range selection	Automatically
Measuring current	Approx. 30 A … 70 A
Battery (installed):	2x lithium / polymer battery with 10 Ah/3.7 V each A
Voltage supply	power supply unit a.c. 100 V … 240 V / d.c. +15 V
Indication	2.7“ OLED display, resolution: 128x64 pixels, 180° angle, four-digit measured value indication
Interface	USB 2.0 connection
Dimensions (device) (h x w x d)	85 x 250 x 260 mm (without handle)
Case dimensions (h x w x d)	190 x 500 x 450 mm
Weight (without accessories)	Approx. 3 kg
Weight (with accessories)	Approx. 9 kg
Weight of the rail system	Approx. 3 kg
Degree of protection protection	IP21
Temperature range	–10 °C ... +40 °C
